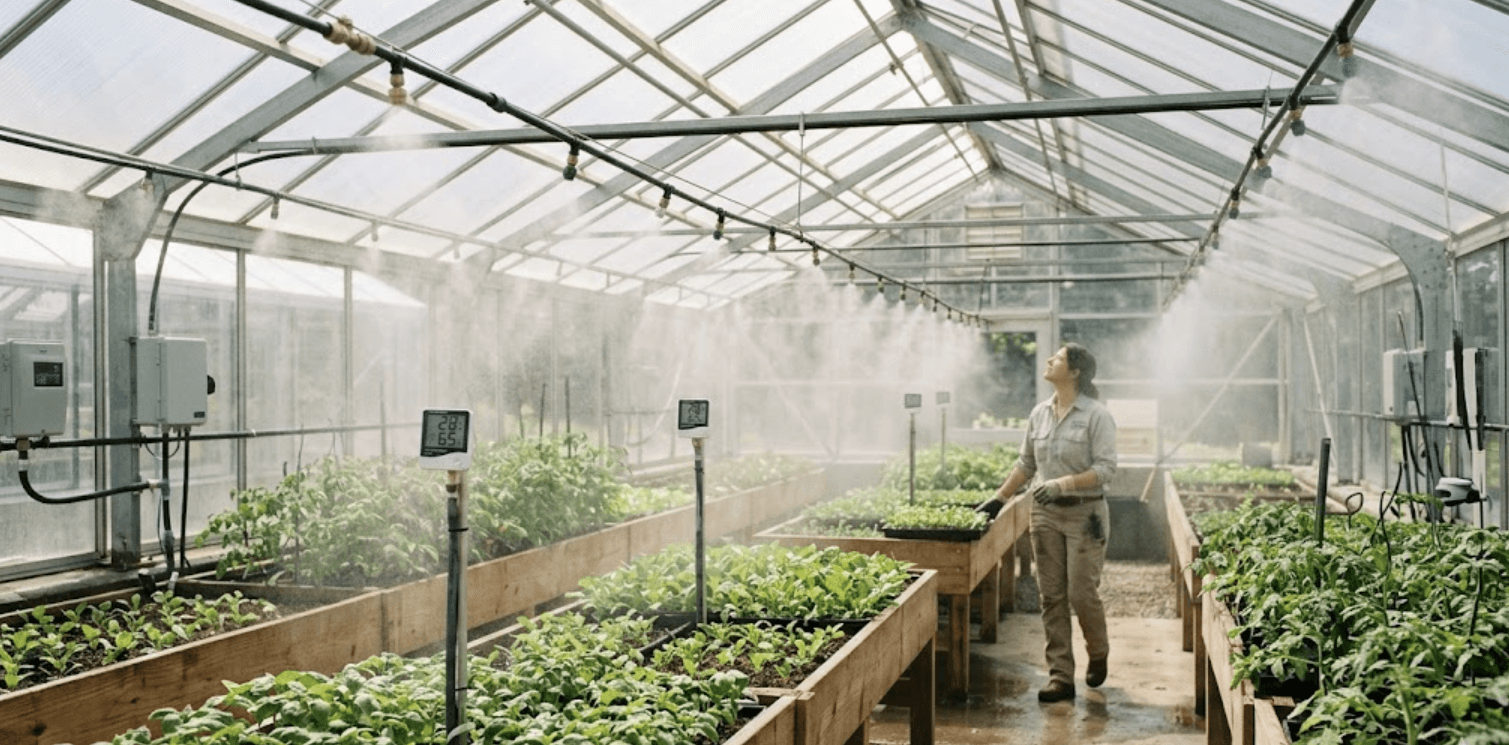

The Definitive Guide to Greenhouse Misting Systems: Evaporative Cooling and Humidity Control

Optimizing the atmospheric conditions within a controlled environment agriculture (CEA) structure is a paramount engineering challenge. Greenhouses, by design, are solar collectors, and managing the immense thermal load they accumulate is critical for plant health, productivity, and profitability. While passive ventilation offers a baseline solution, active climate control systems are necessary to achieve the precision required for high-value crops. Among these, high-pressure misting and fogging systems represent a sophisticated approach, leveraging fundamental thermodynamic principles to achieve both cooling and humidification. This guide moves beyond simple product descriptions to provide a rigorous, analytical breakdown of how these systems function. We will deconstruct the physics of evaporative cooling, dissect the mechanical components, and provide the mathematical frameworks required to design, install, and automate a high-efficiency misting system. Understanding these principles is not merely academic; it is essential for any serious grower looking to mitigate heat stress, reduce plant transpiration rates, and maintain an ideal Vapor Pressure Deficit (VPD), ultimately enabling year-round production of superior quality crops. For growers experiencing excessive summer heat, as detailed in our analysis of why a high tunnel can get so hot in June, these systems offer a direct and powerful solution.

How does evaporative cooling function at a thermodynamic level in greenhouses?

At its core, evaporative cooling is a direct application of the First Law of Thermodynamics, which states that energy cannot be created or destroyed, only converted from one form to another. In a greenhouse misting system, the total energy, or enthalpy, of the air remains constant during the cooling process. What changes is the form of that energy.

• Sensible Heat: This is the thermal energy that can be measured with a standard thermometer (the dry-bulb temperature). It is the energy associated with the kinetic motion of air molecules. When we say an environment is "hot," we are referring to its high sensible heat.
• Latent Heat: This is the hidden energy absorbed or released during a phase change of a substance at a constant temperature. For water to change from a liquid to a vapor (evaporation), it must absorb a significant amount of energy from its surroundings. This required energy is the latent heat of vaporization, which for water is approximately 2,260 kilojoules per kilogram (or 970 BTU per pound).

The process can be modeled with the following equation:

Q = m * L

Where:

• Q is the total heat energy transferred from the air.
• m is the mass of water that is evaporated.
• L is the latent heat of vaporization of water.

When a high-pressure fog system atomizes water into microscopic droplets (5-15 microns), it dramatically increases the surface area of the water exposed to the air. These tiny droplets are so small they remain suspended, absorbing sensible heat from the greenhouse air to fuel their rapid phase change into vapor. The energy used for this phase change is directly removed from the air, causing a measurable drop in the dry-bulb temperature. This process is adiabatic because no external heat is added or removed from the system; the energy is simply redistributed. This cooling effect is crucial for preventing transplant shock from late spring heat when moving young plants into the greenhouse.

On a psychrometric chart, which graphically represents the thermodynamic properties of moist air, this process is illustrated by a movement along a line of constant wet-bulb temperature. The dry-bulb temperature decreases while the relative humidity and dew point increase, but the total energy (enthalpy) of the air-water mixture remains the same.

What is the mechanical difference between high-pressure misting and low-pressure fog systems?

Understanding the engineering and mechanical distinctions between these two system types is critical for selecting the appropriate technology for a given application. The difference in operating pressure is not arbitrary; it directly dictates droplet size, which in turn governs the system's thermodynamic efficiency and horticultural suitability.

High-Pressure Fog Systems

• Operating Pressure: Typically 800 to 1,500 PSI (55 to 103 bar).
• Pump Mechanism: These systems require industrial-grade positive displacement pumps, such as piston or plunger pumps. These pumps trap a fixed volume of water and force it through the system, generating high pressure regardless of flow rate. They are typically belt-driven or direct-drive, connected to a totally enclosed, fan-cooled (TEFC) electric motor.
• Droplet Size (Atomization): The extreme pressure forces water through precision-engineered nozzles with microscopic orifices (e.g., 0.006" or 150 microns), creating a true fog of droplets in the 5-15 micron range. This is often referred to as "flash evaporation" because the droplets have such a high surface-area-to-volume ratio that they absorb heat and convert to vapor almost instantaneously, before they have a chance to fall and wet surfaces.
• System Materials: The high pressure mandates robust materials. Tubing is typically rigid stainless steel or specialized high-pressure flexible nylon. Fittings are high-grade brass or stainless steel compression fittings designed to withstand the operational stress.
• Applications: Ideal for applications requiring maximum cooling with minimal wetting, such as propagation houses, seed germination chambers, and greenhouses with crops susceptible to fungal diseases like botrytis. They are also superior for precise humidity control.

Low-Pressure Misting Systems

• Operating Pressure: Typically 40 to 100 PSI (3 to 7 bar).
• Pump Mechanism: These systems often run directly off municipal water pressure. In cases where line pressure is insufficient, a small centrifugal booster pump may be used. These pumps are simpler and less expensive than their high-pressure counterparts.
• Droplet Size (Atomization): The lower pressure produces a much coarser spray with droplet sizes ranging from 50 to over 100 microns. These larger, heavier droplets have less surface area relative to their volume, causing them to evaporate more slowly. They often fall out of the air before full evaporation, leading to wet foliage, benches, and floors.
• System Materials: Components are less demanding. PVC pipe or standard polyethylene tubing is common, with simple plastic or brass nozzles.
• Applications: Suited for hobby greenhouses, hardening-off areas where some wetting is acceptable, or for simple, periodic irrigation of cuttings. They provide some cooling but are far less efficient and controllable than high-pressure systems.

How do wet-bulb temperature and relative humidity affect misting efficiency?

An evaporative cooling system's performance is not absolute; it is entirely dependent on the ambient atmospheric conditions within the greenhouse, specifically the relationship between dry-bulb temperature and relative humidity. The key metric that quantifies the potential for cooling is the Wet-Bulb Depression.

• Dry-Bulb Temperature (Tdb): The ambient air temperature as measured by a standard thermometer.
• Wet-Bulb Temperature (Twb): The lowest temperature to which air can be cooled by the evaporation of water into the air at a constant pressure. It is measured with a thermometer whose bulb is covered in a water-moistened wick with air moving over it.
• Wet-Bulb Depression: The mathematical difference between the dry-bulb temperature and the wet-bulb temperature (Tdb - Twb). This value represents the theoretical maximum temperature drop that can be achieved through evaporative cooling.

When relative humidity (RH) is low, there is a large capacity for the air to absorb additional water vapor. This results in a large wet-bulb depression and a high potential for cooling. Conversely, when RH is high, the air is already near its saturation point, leaving little capacity for further evaporation. This results in a small wet-bulb depression and very limited cooling potential.

The theoretical limit of evaporative cooling is the wet-bulb temperature. A perfectly efficient system (100% saturation efficiency) would cool the dry-bulb temperature all the way down to the wet-bulb temperature. In practice, high-pressure fog systems achieve a saturation efficiency of 85-95%.

Consider the following scenarios, all with a starting dry-bulb temperature of 95°F (35°C):

This data clearly illustrates that misting systems are exceptionally effective in arid or continental climates where summer brings high temperatures and low humidity. In humid, subtropical, or tropical climates, their effectiveness for cooling is significantly diminished, although they can still be valuable for maintaining high humidity for specific crops.

What components are required to design a high-efficiency greenhouse misting system?

Designing a robust and efficient high-pressure fogging system is an exercise in component integration. Each part must be specified correctly to handle the pressure and flow rate requirements, and to ensure longevity and reliability. A failure in any single component can compromise the entire system.

A typical Bill of Materials (BOM) for a professional system includes:

1. High-Pressure Pump Unit: The heart of the system.

   • Pump Type: Industrial-grade triplex piston or plunger pump with a ceramic plunger for durability and chemical resistance.
   • Motor: A TEFC (Totally Enclosed, Fan-Cooled) motor is essential for operation in damp greenhouse environments.
   • Pressure Regulation: An integrated pressure regulator and unloader valve is crucial. The unloader bypasses flow when nozzles are off, preventing pressure spikes and pump damage.
   • Safety Features: A low-pressure safety switch to prevent the pump from running dry, and a thermal relief valve to protect against overheating.

2. Water Filtration System: Non-negotiable for system longevity.

   • Sediment Filter: At a minimum, a 5-micron filter to remove all suspended solids. A multi-stage setup (e.g., 50-micron pre-filter, 5-micron final filter) is common.
   • Scale Prevention: Either a water softener (ion exchange) or a reverse osmosis (RO) system is required for water with high mineral content (high TDS) to prevent nozzle clogging from calcium and magnesium scale. The requirements for hydroponic growers detailed in our guide to beginner drip systems are very similar.
   • Carbon Filter: If using municipal water, an activated carbon filter is recommended to remove chlorine, which can degrade seals and certain types of tubing.

3. Tubing and Distribution Lines:

   • Materials: Type 304 or 316 stainless steel tubing offers the ultimate in durability but is expensive and difficult to install. High-pressure flexible nylon or composite tubing is a more common and cost-effective choice.
   • Fittings: Compression fittings (for stainless steel) or push-lock fittings (for flexible tubing) are required. All fittings must be rated for at least 1.5x the maximum operating pressure of the system.

4. Fog Nozzles:

   • Orifice Size: Specified in thousandths of an inch (e.g., 0.006", 0.008", 0.012") or millimeters. The smaller the orifice, the finer the mist and the lower the flow rate.
   • Anti-Drip Feature: A critical feature. A small internal valve prevents the line from draining after shutdown, eliminating drips that can damage crops below.
   • Material: Brass is standard, but stainless steel or nozzles with ceramic inserts offer superior wear resistance.

5. Control and Automation Components:

   • Solenoid Valves: 24VAC electrically-actuated valves that open and close to control water flow to different zones. They are wired to the environmental controller.
   • Environmental Controller: A dedicated controller with inputs for temperature and humidity sensors. It automates the on/off cycles based on user-defined setpoints.
   • Sensors: An aspirated sensor box is recommended for accuracy, as it draws air over the sensors to prevent localized readings skewed by solar radiation or moisture.

How do you calculate the nozzle flow rate and spatial layout for uniform cooling?

Proper system sizing and layout are critical for achieving uniform cooling and avoiding wet and dry spots. This process involves a series of calculations to match the system's water output to the greenhouse's cooling demand.

Step 1: Determine Total Water Requirement

A precise calculation involves complex heat load analysis. However, a reliable engineering rule of thumb can be used for most applications. The total water evaporation rate required is typically between 0.03 and 0.05 gallons per hour (GPH) per square foot of greenhouse floor space. Use the lower end for moderate climates and the higher end for hot, arid climates.

Formula: Total Water Requirement (GPH) = Greenhouse Area (sq. ft.) * Water Rate Factor (GPH/sq. ft.)

Example Calculation:

• Greenhouse Dimensions: 30 ft width x 96 ft length
• Greenhouse Area: 30 * 96 = 2,880 sq. ft.
• Climate: Hot, dry (use a factor of 0.04)
• Total Water Requirement = 2,880 sq. ft. * 0.04 GPH/sq. ft. = 115.2 GPH

This means the system must be capable of evaporating 115.2 gallons of water per hour during peak operation to meet the cooling demand.

Step 2: Select Nozzle and Calculate Quantity

Consult the manufacturer's specification sheet for the chosen nozzle. The flow rate is dependent on the orifice size and operating pressure. Let's assume we are using a 0.008" (0.20 mm) orifice nozzle at 1000 PSI, which has a typical flow rate of 1.6 GPH.

Formula: Number of Nozzles = Total Water Requirement (GPH) / Flow Rate per Nozzle (GPH)

Example Calculation:

• Number of Nozzles = 115.2 GPH / 1.6 GPH/nozzle = 72 nozzles

Step 3: Design the Spatial Layout

The goal is uniform coverage. This involves determining the number of lines and the spacing of nozzles on each line. A well-designed layout is a core part of any successful greenhouse operation, just like creating a detailed map with our online garden planning tool is for outdoor beds.

• Number of Lines: For a 30 ft wide greenhouse, 3 to 4 lines are typically sufficient. Let's choose 4 lines. This provides good overlap and coverage.
• Line Spacing: The lines would be spaced evenly across the width. In a 30 ft house, 4 lines could be placed at 6 ft, 12 ft, 18 ft, and 24 ft from one wall.
• Nozzles per Line: Total Nozzles / Number of Lines = 72 / 4 = 18 nozzles per line.
• Nozzle Spacing: The nozzles are spaced evenly along the length of each line. Greenhouse Length / Nozzles per Line = 96 ft / 18 = 5.33 ft spacing between nozzles on each line. A 5 ft 4 in spacing is practical.

Final Layout Summary:

• Number of Lines: 4
• Line Length: 96 ft
• Nozzles per Line: 18
• Total Nozzles: 72
• Spacing between Nozzles: ~5.3 ft
• Spacing between Lines: ~6 ft
• Placement: Lines should be suspended from the greenhouse trusses, approximately 2-4 feet above the final crop height to ensure the fog has time to evaporate before reaching the plant canopy.

What filtration and water treatment solutions prevent nozzle clogging?

The microscopic orifices in high-pressure fog nozzles are extremely susceptible to clogging from two primary sources: suspended particulate matter (silt, sand, rust) and precipitated mineral scale (calcium carbonate). A comprehensive water treatment strategy is therefore not an option, but a fundamental requirement for system reliability.

Stage 1: Particulate Filtration

This is the first line of defense. The goal is to remove all solid particles from the water supply.

• Spin-Down or Screen Filter (Pre-filter): A coarse filter (100-200 mesh) installed at the water source to catch large debris and reduce the load on finer filters.
• Sediment Cartridge Filter: This is the primary particulate filter. For fogging systems, a filter with an absolute rating of 5 microns is the industry standard. A 1-micron filter can be used for ultimate protection if the water source is particularly dirty, but it will require more frequent replacement. These are typically housed in standard 10" or 20" "Big Blue" filter canisters.

Stage 2: Mineral and Chemical Treatment

This stage addresses dissolved solids, which cannot be removed by a mechanical filter.

• Water Hardness and TDS: The primary cause of nozzle scaling is the precipitation of calcium (Ca2+) and magnesium (Mg2+) carbonates from hard water when it evaporates. Total Dissolved Solids (TDS), measured in parts per million (PPM), is a key indicator. Any water source with a TDS above 150 PPM or hardness above 7 grains should be treated.
• Water Softener (Ion Exchange): A water softener uses a resin bed to exchange hardness ions (Ca2+, Mg2+) for sodium ions (Na+). This effectively prevents scale formation. However, growers must be aware that this increases the sodium content of the water, which can be detrimental to sensitive crops or in recirculating hydroponic systems.
• Reverse Osmosis (RO): This is the most complete solution. RO uses a high-pressure pump to force water through a semi-permeable membrane, which rejects 95-99% of all dissolved solids, including minerals, salts, and other contaminants. It produces highly pure water that virtually eliminates the risk of nozzle scaling. While it has the highest capital cost, it is the preferred method for professional CEA facilities.
• Activated Carbon Filter: If the water source is chlorinated municipal water, a carbon block filter should be included in the treatment train. Chlorine can degrade rubber seals and O-rings within the pump and fittings over time.

Regular maintenance is key. Sediment filters should be changed when the pressure drop across them increases by 10-15 PSI. Softener resin needs periodic regeneration with salt, and RO membranes need to be cleaned or replaced according to manufacturer schedules.

How do you automate misting cycles using temperature and humidity controllers?

Manual control of a greenhouse fogging system is impractical and inefficient. Automation is essential for maintaining precise environmental parameters, conserving water and energy, and preventing crop damage from over-saturation. This is achieved through a closed-loop control system.

Core Components of Automation:

1. Sensors: Accurate temperature and relative humidity sensors are the foundation. They should be housed in an aspirated radiation shield, which uses a small fan to constantly draw a sample of greenhouse air over the sensors. This prevents false readings caused by direct solar radiation heating the sensor or by localized pockets of humidity.
2. Environmental Controller: This is the system's brain. It can range from a simple digital thermostat/humidistat to a sophisticated computer capable of managing all greenhouse equipment. The controller reads data from the sensors and compares it to user-defined setpoints.
3. Actuators (Relays & Solenoids): When a setpoint is crossed, the controller sends a low-voltage signal (typically 24V) to a relay. The relay then switches the high-voltage power to the pump motor. Simultaneously, it can open a 24VAC solenoid valve to allow water to flow to a specific zone.

Programming and Control Logic: A crucial concept in fogging control is that the system should not run continuously. Continuous operation would quickly lead to 100% humidity, condensation, and wet plants. Instead, systems are operated on a cyclic schedule that is triggered by setpoints.

Example Control Program:

• Temperature Setpoint (ON): 85°F
• Temperature Differential (OFF): 5°F (System deactivates when temp drops to 80°F)
• Humidity High Limit: 80% RH (Overrides temperature control to prevent over-saturation)
• Cycle ON Time: 10 seconds
• Cycle OFF Time: 120 seconds

Operational Sequence:

1. The controller's sensor reads 86°F and 55% RH.
2. Since 86°F is above the 85°F setpoint, the cooling program is initiated.
3. The controller activates the pump relay and opens the zone solenoid for 10 seconds, releasing a cloud of fog.
4. The controller then deactivates the system for 120 seconds, allowing the fog to fully evaporate and mix with the air.
5. After 120 seconds, the controller re-evaluates. If the temperature is still above 85°F, it runs another 10-second mist cycle.
6. This process repeats until the temperature drops to 80°F or the humidity rises to 80% RH, at which point the cooling program is paused.

Advanced Control: Vapor Pressure Deficit (VPD) The most advanced controllers can calculate and control based on VPD. VPD is a measure of the "drying power" of the air and is a more accurate indicator of plant transpiration stress than RH alone. It combines temperature and humidity into a single, actionable value (measured in kilopascals, kPa). By programming the controller to maintain an optimal VPD range (e.g., 0.8 - 1.2 kPa), growers can directly manage plant water use and stomatal function for optimal growth. This level of control is especially important for delicate propagation, which is often a key part of successful seed starting for beginners.

What are the operational differences between misting and pad-and-fan cooling systems?

While both high-pressure fog and pad-and-fan systems utilize the principle of evaporative cooling, their method of application and resulting environmental conditions are fundamentally different. The choice between them depends on the climate, crop type, greenhouse structure, and specific horticultural goals. For a more detailed comparison, you can read our in-depth guide comparing fan-and-pad versus misting systems.

Pad-and-Fan Systems

• Mechanism: Large exhaust fans are placed at one endwall of the greenhouse, while the opposite endwall is fitted with a thick, porous cellulose pad that is kept saturated with water. The fans create negative pressure, pulling hot, dry outside air through the wet pad. The air is cooled and humidified as it passes through the pad and is then drawn down the length of the greenhouse before being exhausted.
• Cooling Power: These systems can move massive volumes of air and provide very high cooling capacity. They are the workhorses of large commercial greenhouses in hot, arid regions.
• Temperature Gradient: This is their single largest operational drawback. A significant temperature differential, often 7°F to 12°F, is created between the cool air entering at the pad end and the warmer air being exhausted at the fan end. This zonal temperature difference can lead to uneven crop growth, development, and maturation.
• Humidity: They add a large amount of humidity to the air, but control is not precise. The humidity is highest at the pad end and decreases towards the fans.

High-Pressure Fog Systems

• Mechanism: Fog is generated by nozzles distributed uniformly throughout the greenhouse, typically in the overhead space. The cooling occurs in situ as the fog evaporates directly in the air surrounding the plants.
• Cooling Power: While the total BTUs of cooling may be less than a massive pad-and-fan system, it is applied far more efficiently and directly where it is needed.
• Temperature Uniformity: This is their key advantage. Because cooling is distributed throughout the space, there is no significant temperature gradient. The entire crop experiences a consistent environment, leading to more uniform growth. This uniformity is as beneficial inside the greenhouse as a tool like the Companion Visualizer is for planning uniform plant health outdoors.
• Humidity: They offer exceptionally precise humidity control. By adjusting cycle times, a grower can maintain a specific RH or VPD setpoint with a high degree of accuracy, making them ideal for sensitive applications like seed germination and rooting cuttings.

Comparison Table

In many modern greenhouse designs, a hybrid approach is used. A pad-and-fan system may provide the bulk cooling, while a high-pressure fog system is used for supplemental cooling on the hottest days, for precise humidification during propagation, or for applying foliar treatments.
